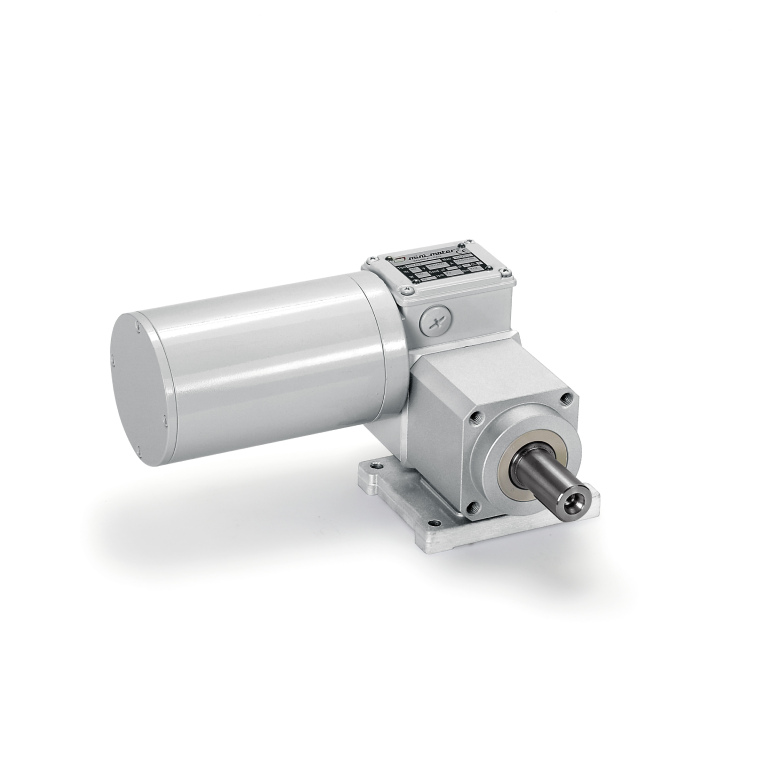

WORM GEARMOTORS WITH PLANETARY REDUCTION GEAR.
MOTOR: Asynchronous three-phase motor with 2 poles, totally enclosed. Thermal safety feature. Class F winding in accordance with CEI EN 60034-1. IP67 standard protection in accordance with CEI EN 60529.
GEAR UNIT: With die-cast aluminium casing. Second stage in steel. Wheelbase from 32 mm. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with grinding thread rotating on ball and roller bearings, output shaft in stainless steel on request. Lubrication with special long-lasting oil. Sealing rings made in special white rubber for high temperatures. Rated torque from 13,1 to 90 Nm. Version B3 or B5. B5/S left version – B5/D right version. White epoxy protective coating. ALWAYS specify application environments.
CUSTOMIZED PRODUCT ON REQUEST.
