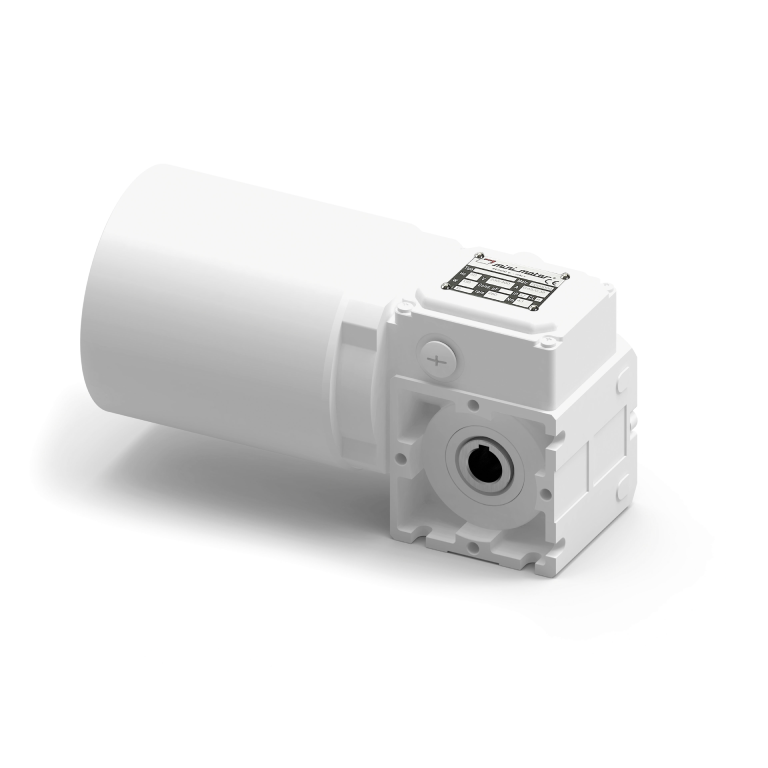

WORM GEARMOTOR

MOTOR: Asynchronous three-phase motor with 2 poles, totally enclosed. Thermal safety feature.Class F winding in accordance with CEI EN 60034-1. IP67 standard protection in accordance with CEI EN 60529.

GEAR UNIT: With die-cast aluminium casing. Wheelbase from 38 mm. Wheel rim in special bronze 120/160 HB hardness. Worm gear in hardened steel with grinding thread rotating on ball and roller bearings, output shaft in stainless steel on request.Lubrication with special long-lasting oil. Sealing rings made in special white rubber for high temperatures. Rated torque from 4,4 to 35 Nm. Version B3 or B5. B5/S left version – B5/D right version. White epoxy protective coating. ALWAYS specify application environments.

CUSTOMIZED PRODUCT ON REQUEST
